Fixed Quantity Discharge Squeeze Container
(57) Abstract

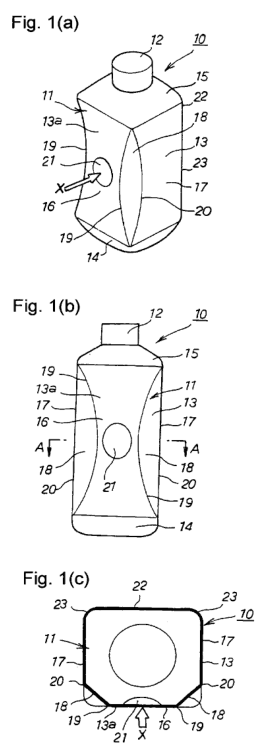

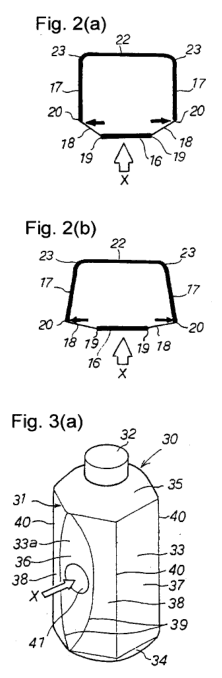

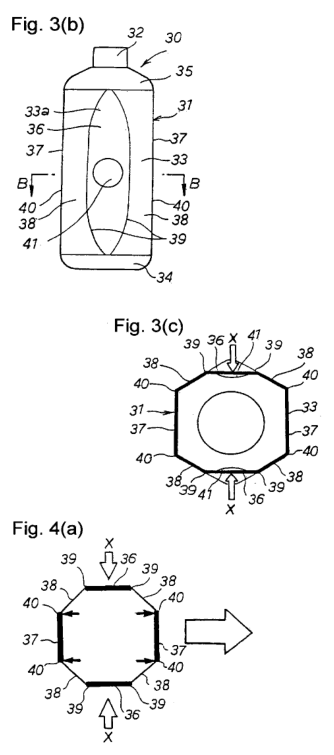

A container body ( 11 ) is provided with a squeeze operating portion ( 13 a ) between a shoulder portion ( 15 ) and a bottom portion ( 14 ), the squeeze operating portion including a squeeze face portion ( 16 ) opposed to a squeeze direction X, a pair of lateral support wall portions ( 17 ) arranged along the squeeze direction X at both side sections of the squeeze face portion ( 16 ), and inclined linking face portions ( 18 ) arranged as being inclined therebetween. When the squeeze face portion ( 16 ) is compressed to the squeeze direction x, the inclined linking face portions ( 18 ) expand distance between the pair of lateral support wall portions ( 17 ) at both sides as deforming along the squeeze face portion ( 16 ) from an inclined state against the squeeze face portion ( 16 ). The inclined linking face portions ( 18 ) are restricted so as not to be flipped in the squeeze direction (x) side after deformation completes as expansion force vanishes, so that constant quantity of content liquid is discharged.
