Storage & Containers · lapsed Sep 16, 2026

Residential Recycling Bin

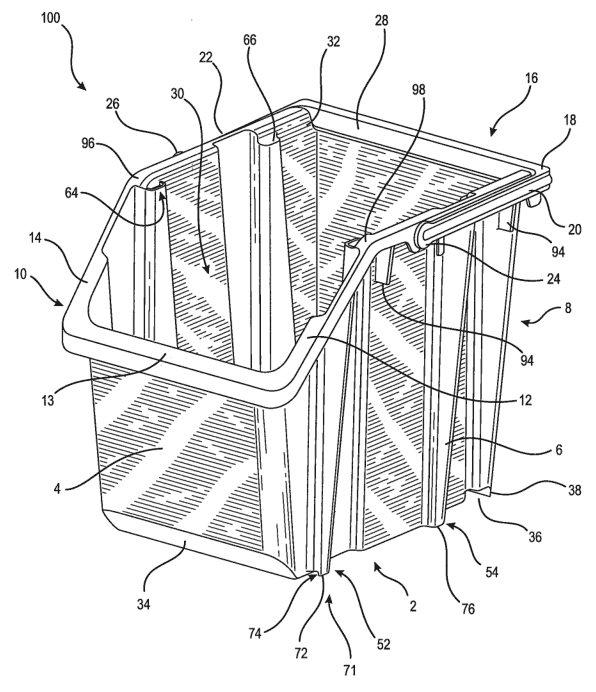

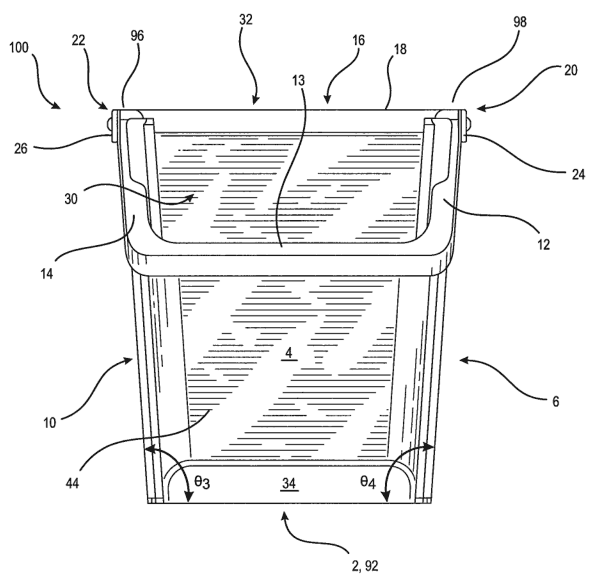

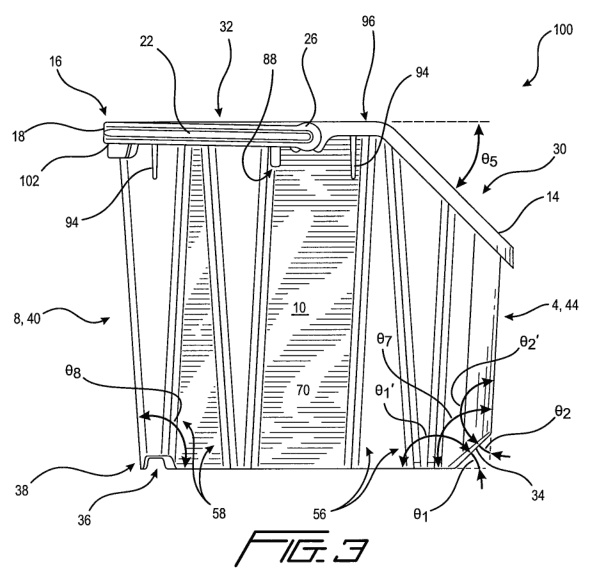

Sheet 1 of the patent drawingsSheet 2 of the patent drawingsSheet 3 of the patent drawings

(57) Abstract

A recycling bin has left and right sidewalls, a base, and front wall. The front wall is lower than the other three walls, and when two bins are stacked in a 0° stacking configuration, the lower front wall of the lower bin and a sloped surface on the lower portion of the upper bin create a recyclable receiving chute. When stacked, the upper bin is held to the lower bin by a combination of a channel on the lower rear portion of the base fitting over a handle resting upon an upper portion of the rear wall. A lower lip on the lower portion of the rear wall aligns with the handle and substantially prevents front-wards and backwards motion of the upper bin. A portion of the handle fits within a top open portion of the rear wall. The bin also has a plurality of inverted “V” shaped liner retainers.
