Sports & Fitness · lapsed Sep 2, 2026

Muscle-Back, With Insert, Iron Type Golf Club Head

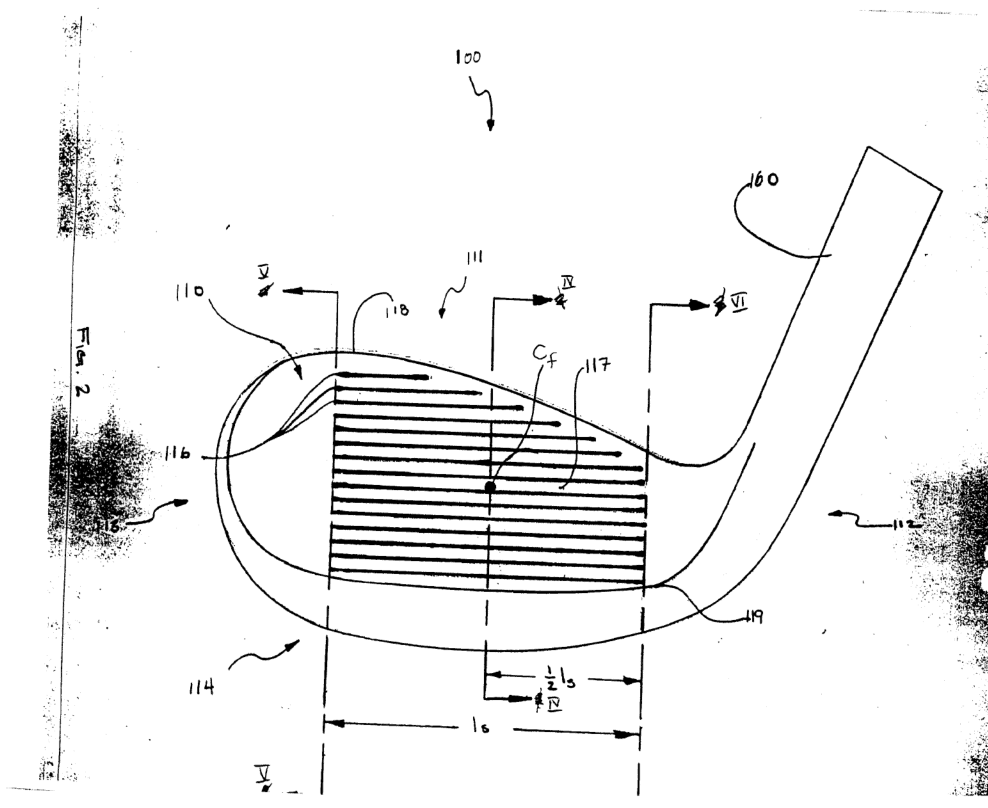

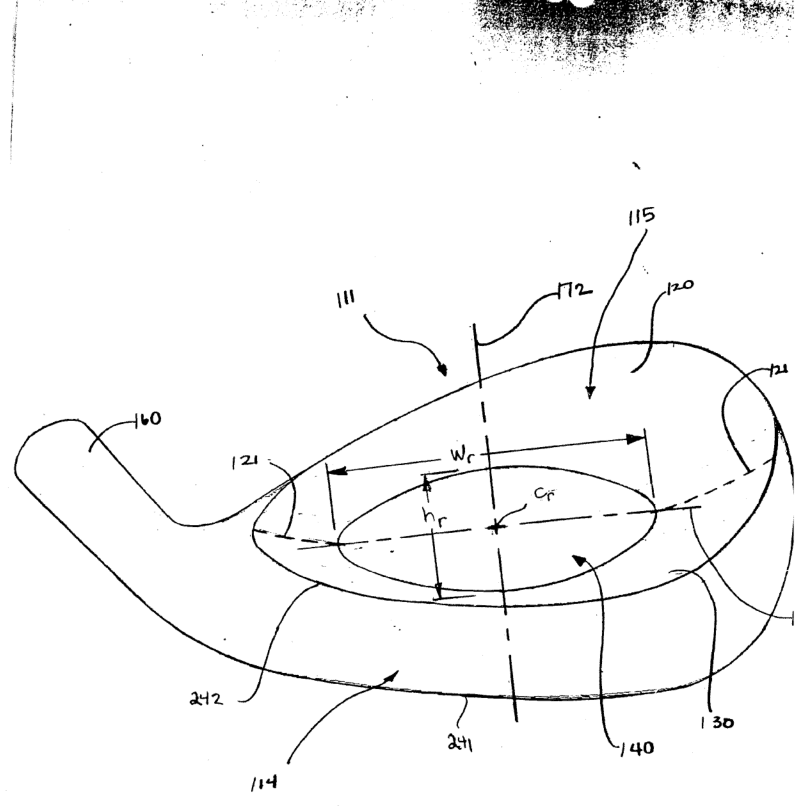

Sheet 1 of the patent drawingsSheet 2 of the patent drawingsSheet 3 of the patent drawings

(57) Abstract

A muscle-back iron golf club head includes a blade-like upper mass, a muscle-like lower mass, a planar front surface, a top surface, a sole surface, a heel surface, a toe surface, and a rear surface having a first contour. A recess is in the rear surface, the recess having a first portion in the blade-like upper mass and a second portion in the muscle-like lower mass. An insert may be provided in the recess, and such insert may substantially fill the recess and may include a back surface having a second contour which is different from the first contour of the club head rear surface.
