Ratchet wrench head with a hardened metal bushing

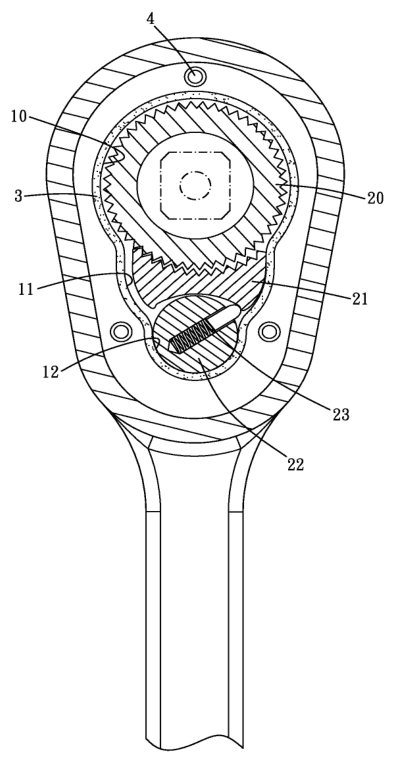

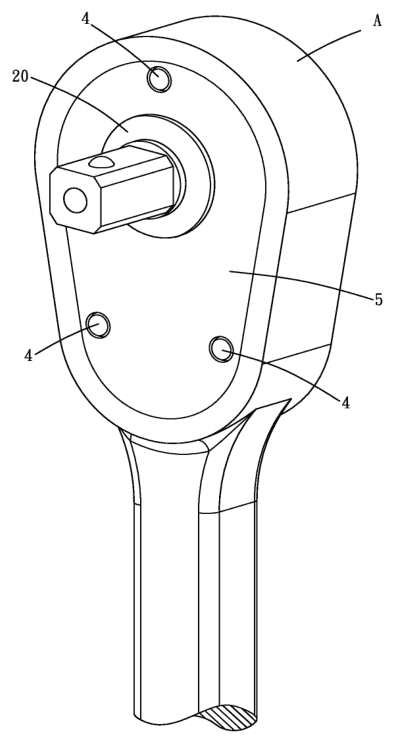

A hand ratchet where the ratchet mechanism sits inside a cavity in a metal head and is surrounded by a thin, hardened metal bushing that fills the clearance between the mechanism and the head. The bushing is intended to take wear from the pawl/selector parts that press against the head and to keep the ratchet assembly centered; mechanics and tool buyers who want durable hand wrenches are the likely users.
(57) What the patent covered

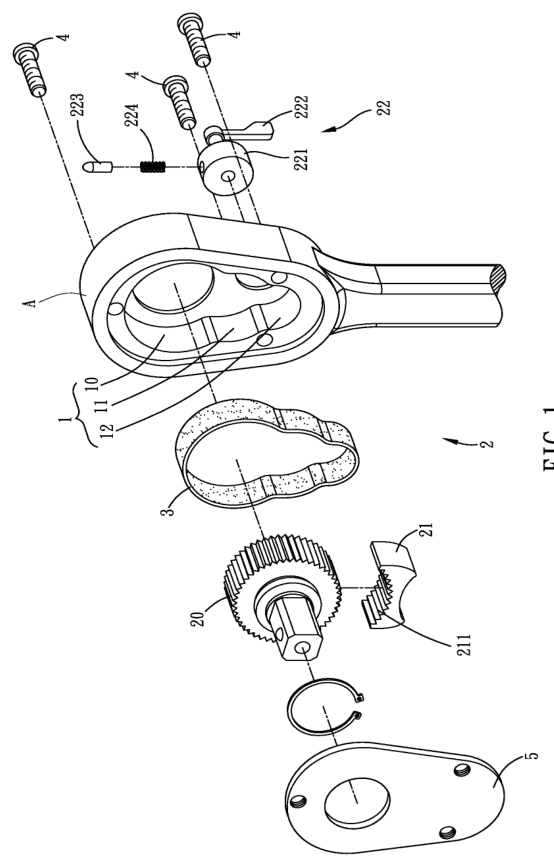

The main independent claim requires a metal wrench head with a cavity, a ratchet assembly sized slightly smaller than that cavity, and a bushing made of a metal harder than the head fitted in the clearance between the ratchet assembly and the cavity wall; the bushing has substantially consistent thickness so its inner and outer peripheries match the cavity shape.
The distinctive part: Putting a continuous, uniformly thick hardened metal sleeve between the ratchet assembly and the head to prevent wear and maintain fit.
Novelty 3/5. This is a focused improvement on common ratchet construction, bushings, liners and hardened inserts were known, but this claims a specifically shaped, consistent-thickness metal sleeve matched to the head cavity.
Making it
Likely forged or drop-forged steel head machined to form the cavity, turned/stamped ratchet parts, precision-formed or machined hardened steel bushing pressed or drop-in fitted, and final assembly with springs and fasteners (heat treatment for bushing/head as separate steps).
Materials: carbon steel or alloy steel (head), hardened steel or tool steel (bushing), stainless or plated steel (ratchet internals), spring steel (pawl/springs)
Manufacturability 4/5. Requires standard tooling for forged/machined wrench heads plus a secondary step to produce and fit a thin hardened steel sleeve; several simple parts and hand or machine assembly, no electronics.
Is anyone buying?
We haven't run a demand check on this one yet. Shoppers would likely search for ratchet wrench hardened bushing, replacement ratchet sleeve, durable ratchet head insert; the links on the right open those searches.
Who buys it: professional mechanics, DIYers who want long-life hand tools
Before you make it
We didn't find any related continuation or divisional patents still in force, although that doesn't rule out design patents, trademarks or unrelated patents covering the same product.
Practical risks are limited to a crowded hand-tool market and small cost/assembly increase from a separate hardened sleeve; the claim is fairly narrow to that specific continuous-thickness metal bushing arrangement.
Owners occasionally revive lapsed patents (about 1.5% are), and this page is a research lead rather than legal advice, so get a freedom-to-operate opinion before you manufacture anything.
