Liquid Concentrate/extract Beverage Dispenser With Replaceable Concentrate/extract Cartridge
(57) Abstract

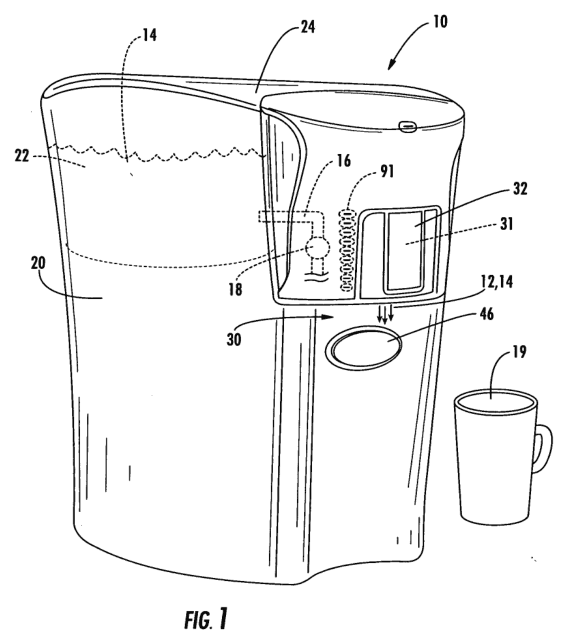

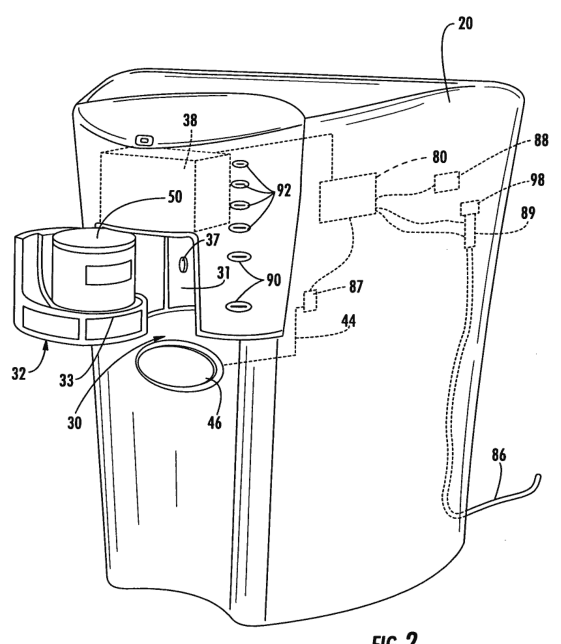

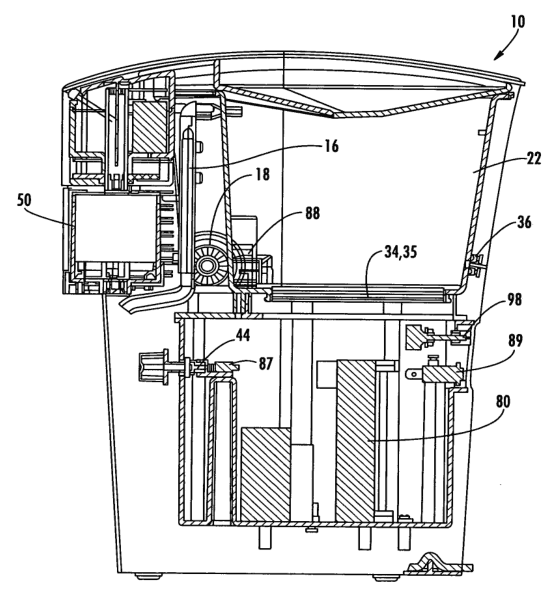

A beverage dispenser for dispensing a beverage into a container is provided. The dispenser includes a housing having a dispensing area. A pump or a control valve is in communication with a source of diluent which is to be dispensed into the dispensing area. A cartridge receiving area and a dispensing actuator are located in the housing. A concentrate/extract cartridge is removably insertable into the cartridge receiving area in a position to be actuated by the dispensing actuator, the concentrate/extract cartridge being adapted to hold a beverage concentrate/extract and including a dispensing aperture for dispensing a beverage concentrate/extract into the dispensing area upon placement of the concentrate/extract cartridge in the cartridge receiving area. A controller is located in the housing to control the actuator to discharge concentrate/extract into the dispensing area. A method of dispensing a selected beverage made from concentrate/extract and a diluent is also provided.
