Reversible Ratchet Wrench
(57) Abstract

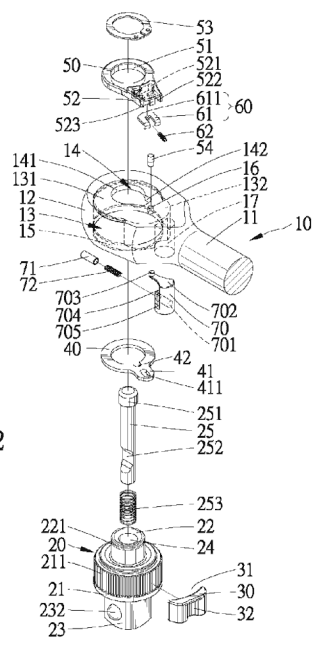

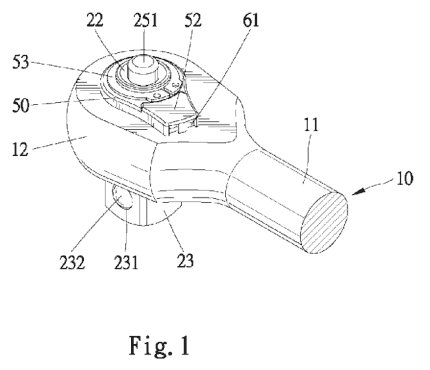

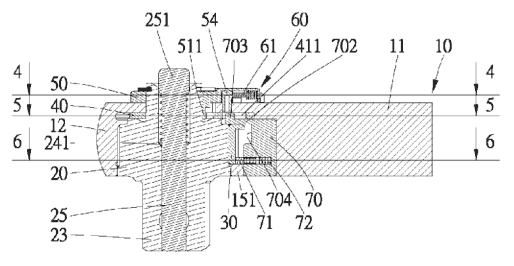

A reversible ratchet wrench includes a handle from which a head extends. The head includes a compartment and a receiving hole in communication with the compartment. A drive member is rotatably mounted in the compartment and a pawl is slidably mounted in the compartment. A ring is mounted in the compartment and around an end of the drive member. A reversing plate is pivotably mounted to the end of the drive member and operatively connected to the ring to turn therewith. A switching member is pivotably mounted in the receiving hole of the head. The switching member is operatively connected to a tip piece of the ring to turn therewith. The switching member is operatively connected to the pawl to move the pawl for changing a driving rotating direction of the reversible ratchet wrench when the reversing plate is moved between two positions corresponding to two opposite driving rotating directions.
