Vertical Conductive Textile Traces And Methods Of Knitting Thereof
(57) Abstract

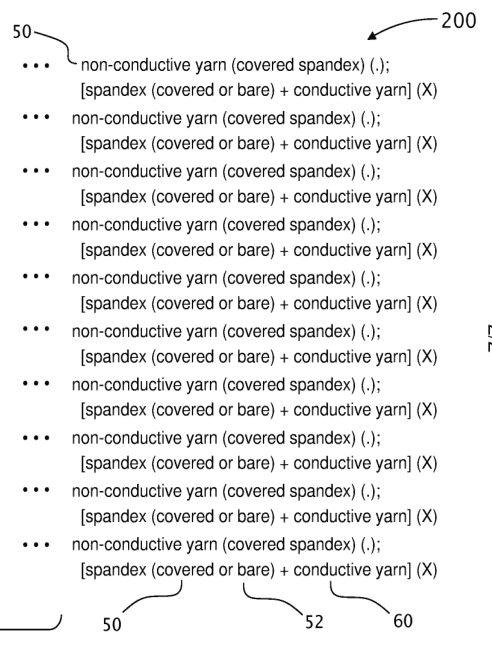

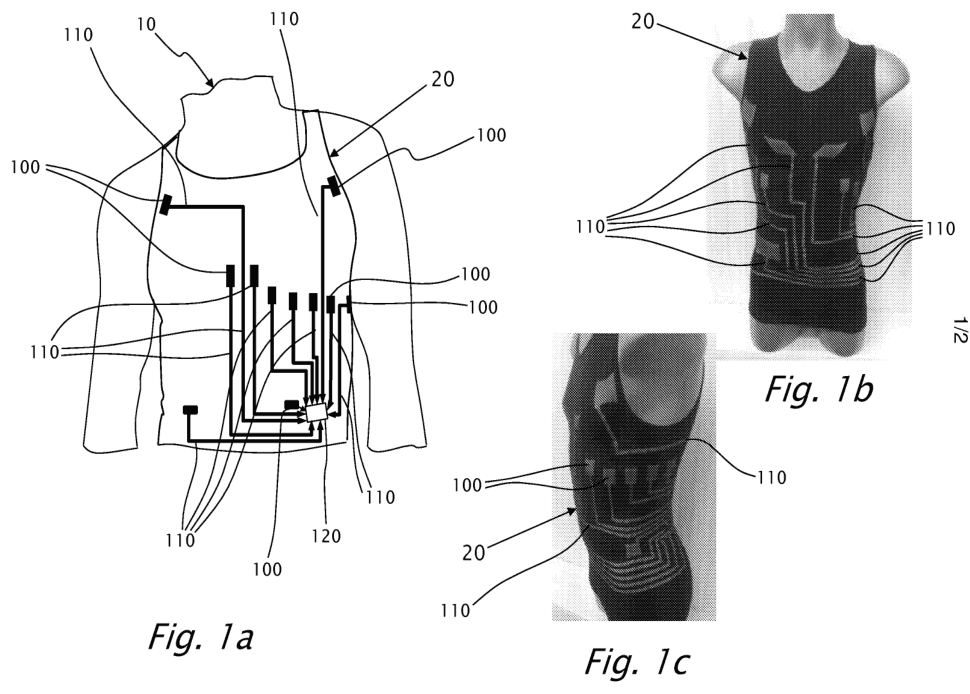

A method for knitting a garment having a tubular form, including knitting at least one vertical conductive textile trace on a machine having N participating feeders and M needles. The method includes the steps of continuously knitting the tubular form with one or more flexible non-conductive base yarns, and knitting the vertical conductive textile trace integrally within the tubular form, using a conductive yarn, in addition to spandex yarns, but not the base yarns. The conductive yarn is knitted in a float-loop form by knitting a stitch and skipping over y needles, as follows: repeatably knitting a line segment L k , using feeder F i and starting at needle D 1 ; and knitting line segment L k+1 , using the next feeder and start stitching the first float-loop at needle D 1 +s where 0<s<y.
