Transport Bag For Transporting And/or Storing Articles, And Transport Device Comprising Said Transport Bag
(57) Abstract

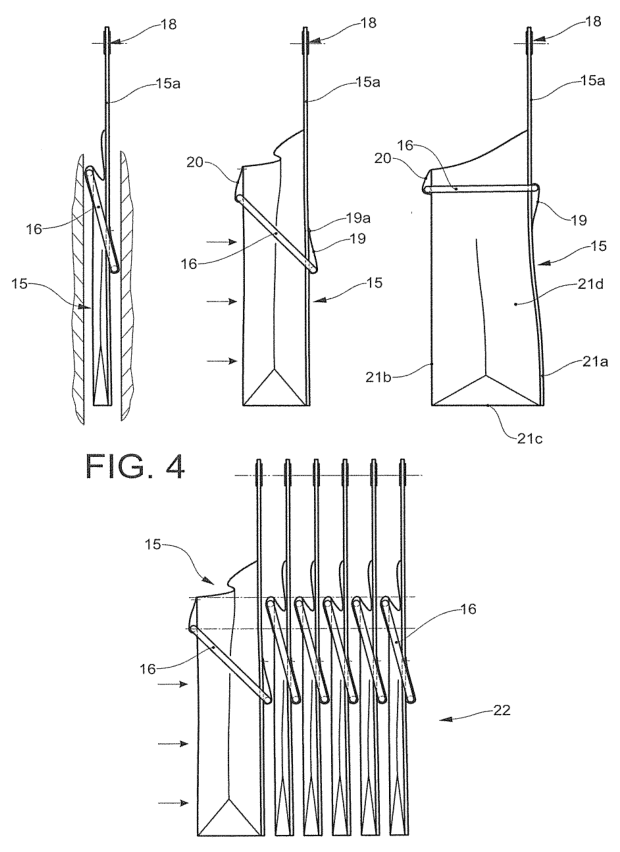

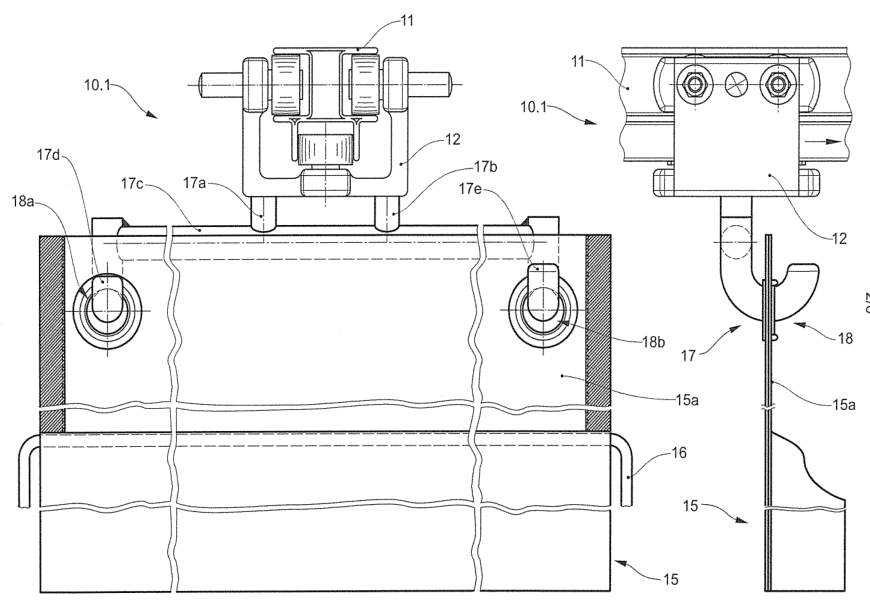

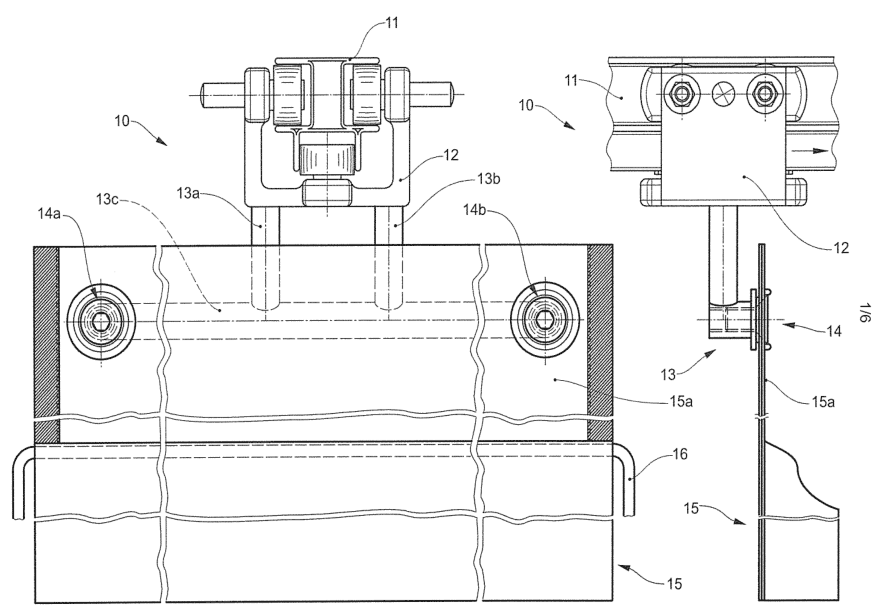

A transport bag ( 15 ) for transporting and/or storing articles comprises a front wall ( 21 b ) and a back wall ( 21 a ) that are flexibly connected to one another via a bottom section ( 21 c ) so as to be movable back and forth between a first configuration in which the front wall and back wall form an upwardly open bag that can be filled from above, and a second configuration in which the front wall and back wall lie closely alongside one another and form a bag that is folded together, wherein the back wall ( 21 a ) is extended upward above and beyond the height of the front wall ( 21 b ) with a support section ( 15 a ) for fastening the transport bag ( 15 ) to a transport device ( 10.2 ). Easy filling and emptying of the transport bag ( 15 ) is achieved by providing an opening ( 16, 19, 20 ) that automatically brings the transport bag ( 15 ) into the first configuration and keeps the transport bag there, and allows a deliberate shift from the first configuration into the second configuration.
