Strut with spring seats on upper and lower bearings
A MacPherson-type strut that places the coil spring between two bearing assemblies so both spring seats rotate independently of the damper cylinder. The lower spring seat is mounted to a lower bearing around the damper cylinder so the spring end can spin during compression, intended for vehicles with front strut/knuckle assemblies. Typical users would be vehicle OEMs or aftermarket suppliers of replacement struts and top mounts.
(57) What the patent covered
This write-up was generated by AI from the patent's text and may contain mistakes, so check it against the original patent before relying on it.

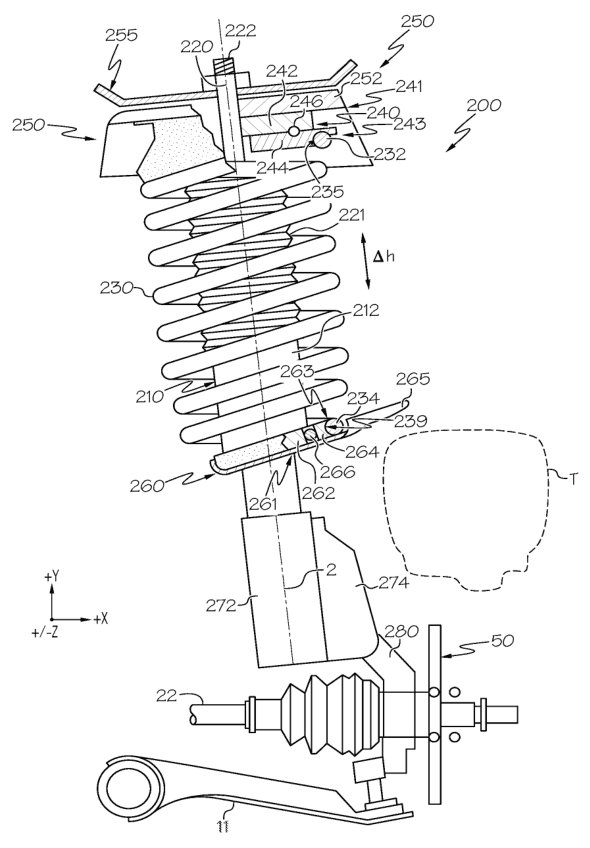

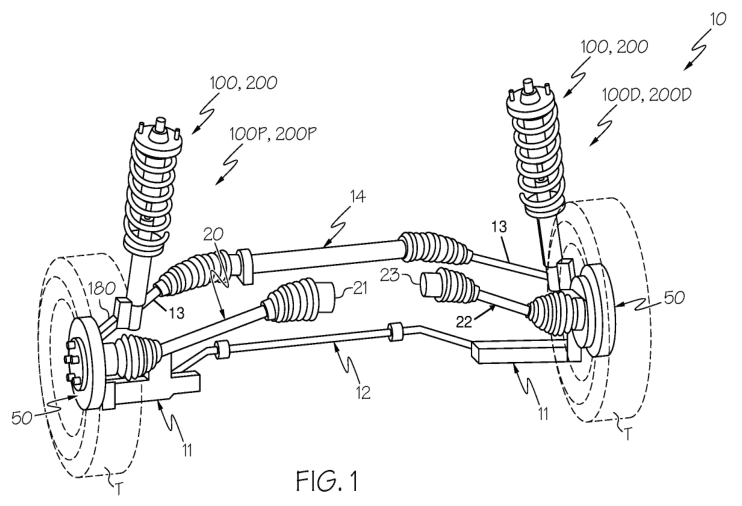

The main independent claim covered a strut assembly having a damper cylinder, piston rod and coil spring, plus an upper bearing assembly and a lower bearing assembly, where the coil spring extends between and is seated on those bearing assemblies and the lower end of the coil spring is seated to the lower bearing so that it freely rotates about the damper cylinder when the spring is compressed. The assembly thus requires both upper and lower bearing seats and a freely rotating lower spring end around the damper cylinder.

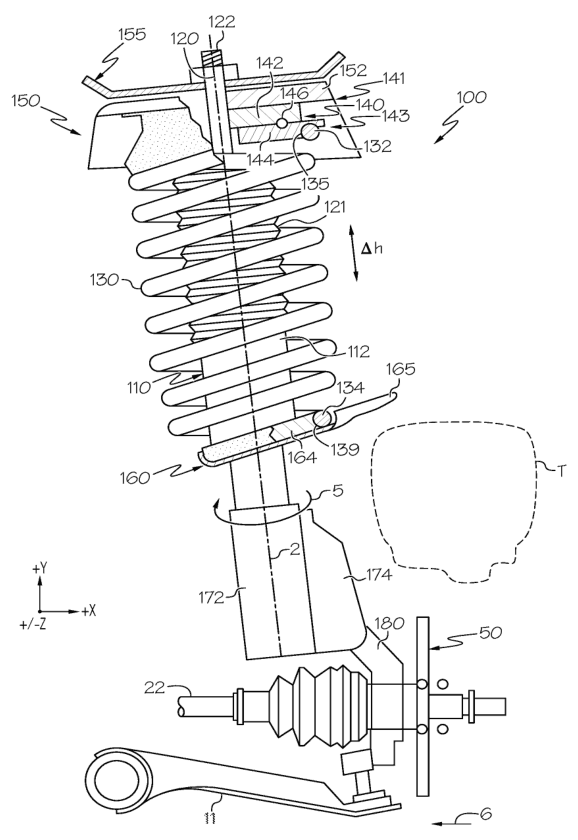

Distinguishing feature: Positioning a lower bearing with a lower spring seat that allows the lower end of the coil spring to rotate freely around the damper cylinder during compression to reduce torque transfer to the knuckle.
Novelty 3/5. Reducing spring-induced torque on the strut/knuckle was a known problem; the patent applied a dual-bearing approach (both upper and lower spring seats on bearings) rather than a single fixed spring seat, which is a practical improvement over typical strut designs.
Manufacturing
Damper cylinder and piston rod manufactured by machining and welding; coil spring formed from heat-treated cold-wound high-carbon steel; upper and lower bearing assemblies produced by stamping and bearing insert assembly; final assembly by press-fitting/staking of bearings and hand or robotic assembly of spring onto strut.
Materials: Stamped or cast steel damper cylinder/strut housing, Hardened steel piston rod, Elastomeric or stamped steel spring seats, High-carbon coil spring steel.
Manufacturability 4/5. Requires several stamped/cast metal parts, bearing inserts and controlled assembly to ensure bearing alignment and free rotation of the lower spring seat; uses common automotive suppliers and tooling.
