Sealing Device And Fastening Means
(57) Abstract

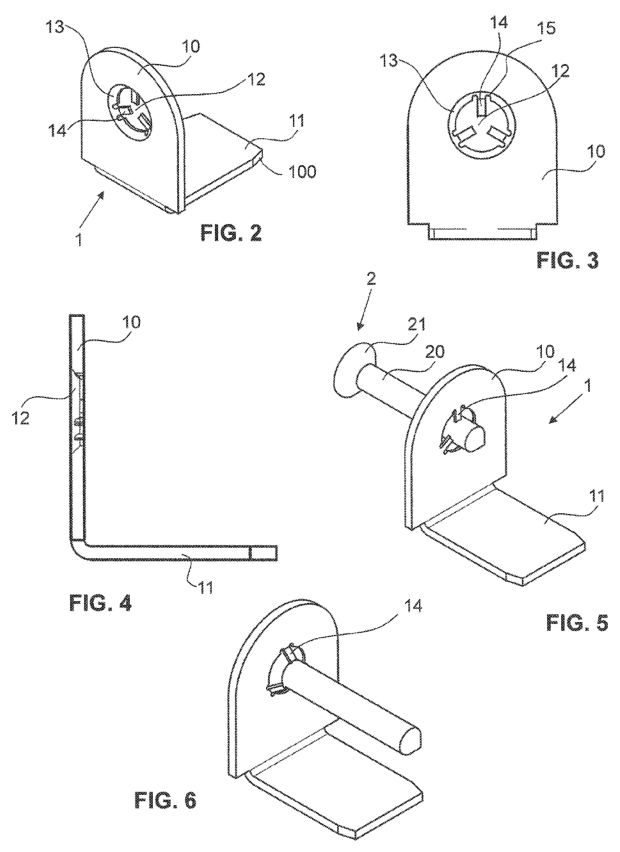

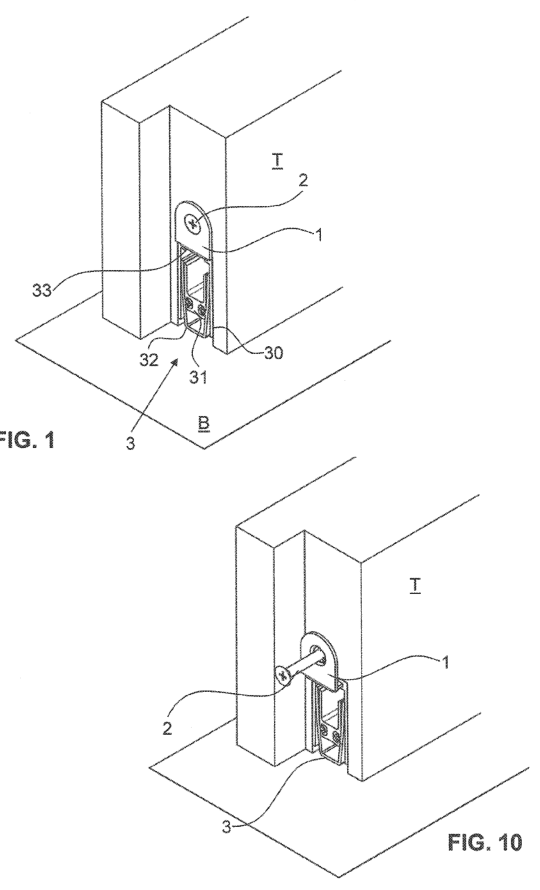

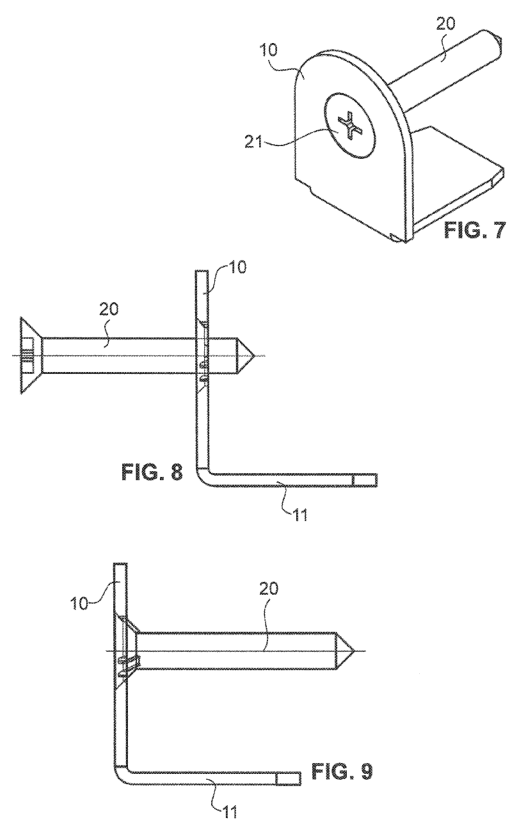

The invention relates to a seal device for a door or a window having a housing rail ( 30 ) and a sealing strip ( 31, 32 ) retained in the housing rail ( 30 ). The seal also has at least one fastener ( 1 ) for fastening the housing rail ( 30 ) to a door leaf or window sash (T) of the door or window, wherein the fastener ( 1 ) comprises a plate ( 10 ) for lying on an end face of the door leaf or window sash (T) and a passage opening ( 12 ) for a screw ( 2 ), which passage opening is arranged in the plate ( 10 ). A retaining element ( 14, 43 ) for retaining the screw ( 2 ) is present in the passage opening ( 12 ). Said seal device enables one-handed mounting of the retaining bracket on the door leaf and thus makes the mounting of the seal easier.
