Bottle Carrier Made Of Foldable Flat Material
(57) Abstract

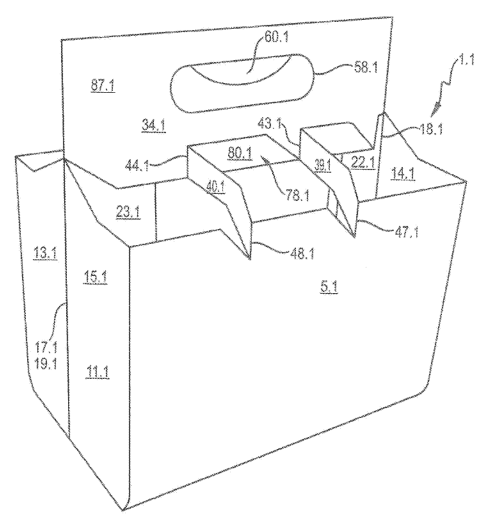

A bottle carrier made of foldable flat material having a handle comprising two overlapping outer handle walls and two inner handle walls between the outer handle walls, front walls, perpendicular to the handle and two front wall sections on different sides of the handle, connecting straps, connected with an inner edge of a front wall section via a front folding line, folded around front folding lines and connected with the handle, longitudinal walls, parallel to the handle and connected with the outer edges of two front wall sections via side folding lines, a bottom wall, connected with lower edges of longitudinal walls via bottom folding lines, separating webs, connected with lower edge areas of the outer handle walls via inner web folding lines, folded around the inner web folding lines out of the lower edge areas, an insert is arranged between the two outer handle walls.
